Put the two Elinor executive chairs side by side and the floor tells you nothing: both sweep the same Ø 810 mm (Ø 31.9 in) circle, both lift the seat through the same 410÷540 mm (16.1÷21.2 in), both carry the same backrest dimension of 590÷720 mm (23.2÷28.3 in). What changes is what happens above the shoulders: the 3755 stands 950÷1080 mm (37.4÷42.5 in) tall, the 3756 low back 840÷970 mm (33.1÷38.2 in). Claudio Bellini kept everything that touches the room identical and moved only the part you lean against.

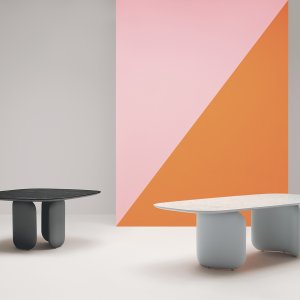

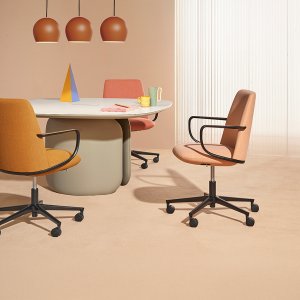

That matters when the two versions share a table. The high back belongs behind the desk and where the table begins; the low back sits opposite it and around the meeting table, where a tall backrest would cut the sightline across the room. Because the swept circle is the same, a plan drawn for one is a plan drawn for the other, and clearances checked once stay valid. La Mercanti puts both codes on the same layout before quoting, so the room is measured once. The collection closes with the Elinor tables in four sizes, from the 150×150 square to the 300×110, each also available with the CC60 duct or the compact CCO cable box, on bases upholstered in the same leather.
Collection: Elinor — 3755 high-back executive chair, 3756 low back, ELN tables 150×150, 200×110, 260×110 and 300×110 cm, also in the CC60 and CCO cable-access versions
Manufacturer: Pedrali S.p.A., Italy
Design: Claudio Bellini

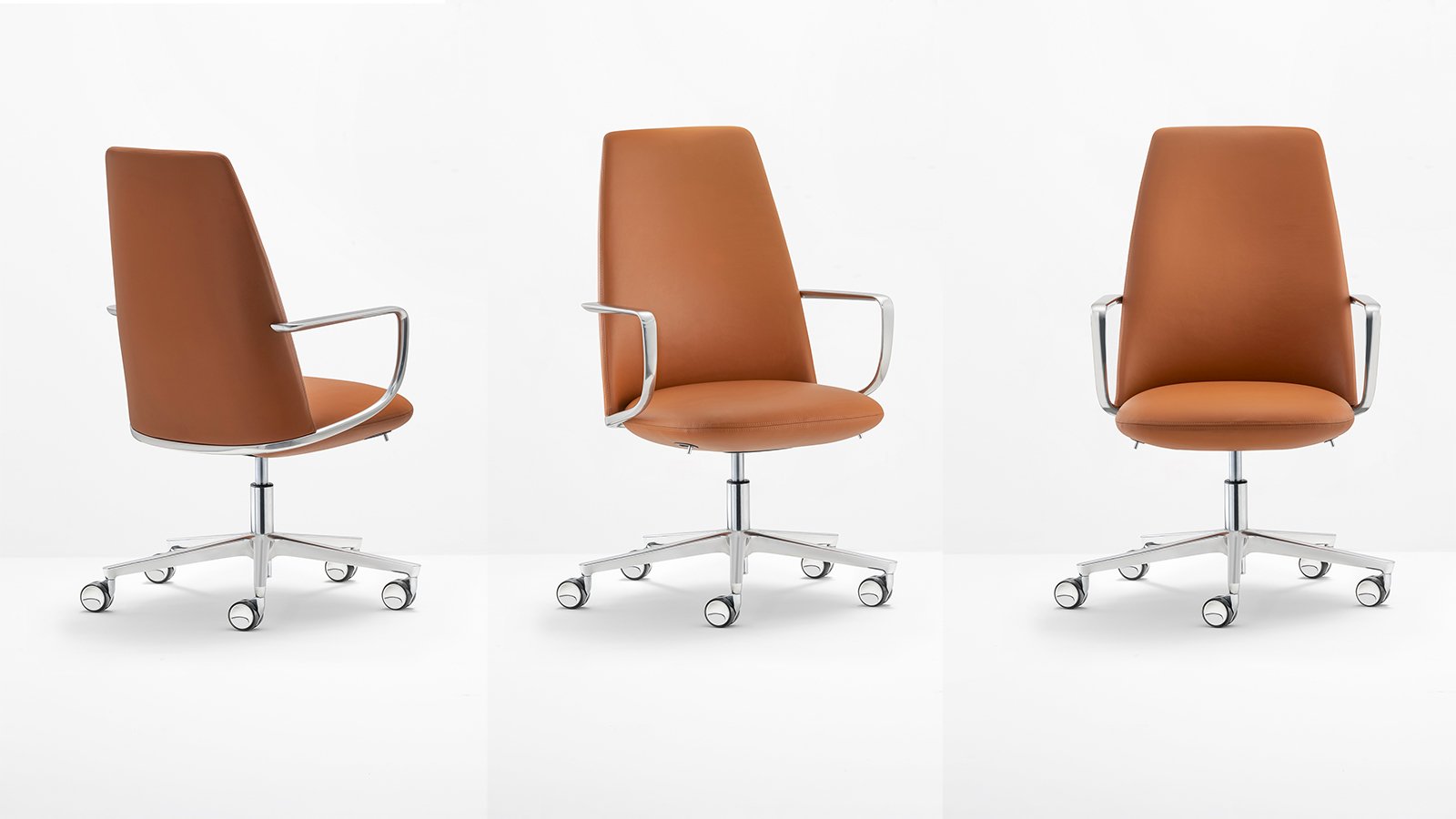

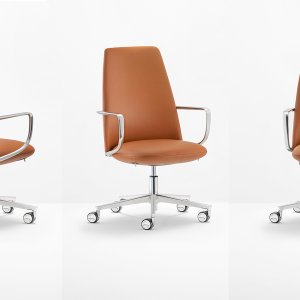

Elinor 3755: overall height 950÷1080 mm (37.4÷42.5 in), seat height 410÷540 mm (16.1÷21.2 in), backrest dimension 590÷720 mm (23.2÷28.3 in), swept diameter Ø 810 mm (Ø 31.9 in), 23.5 kg (51.8 lb)

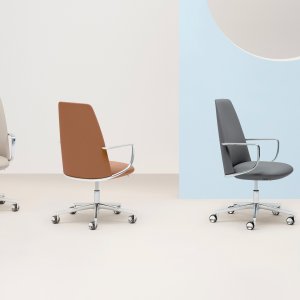

Elinor 3756: low back, overall height 840÷970 mm (33.1÷38.2 in), same seat, backrest and diameter figures as the 3755, 21 kg (46.3 lb)
Seat: moulded flexible injected polyurethane foam, density 60÷65 kg/m³, fire retardant class 1 IM, covered with fabric
Mechanism: weight-activated synchro-tilt integrated, with chromed levers for seat lift and backrest inclination; declared angles 9°, 0.5°, 18° and 1.5°

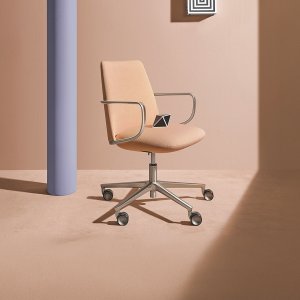

Armrests: die-cast aluminium, powder coated; other standard colours available on request
Frame: Ø 40 mm (1.6 in) column with gas lift, five-spoke die-cast aluminium base, Ø 65 mm (2.6 in) swivel castors with polyurethane rubber rotating part
Frame finishes: black powder coated, polished aluminium, satinized aluminium; the castor finish follows the base — black with black, chrome with polished, satinized with satinized
Upholstery: categories C210÷C217, G excluding G07, G180÷G185 and G230÷G239, H excluding H40÷H53 and H140÷H143, and P

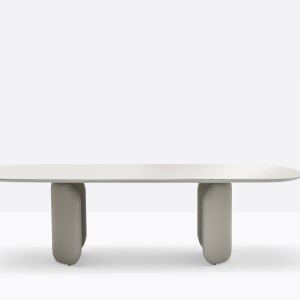

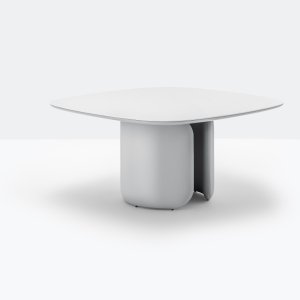

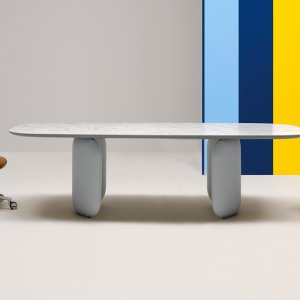

Elinor ELN tables: 150×150 cm (59.1×59.1 in) 95 kg (209.4 lb), 200×110 cm (78.7×43.3 in) 97 kg (213.8 lb), 260×110 cm (102.4×43.3 in) 118 kg (260.1 lb), 300×110 cm (118.1×43.3 in) 156.5 kg (345 lb); height 740/745 mm (29.1/29.3 in)

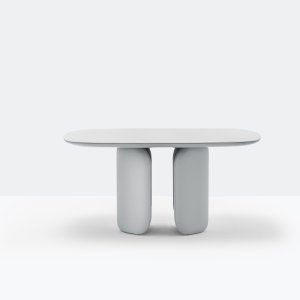

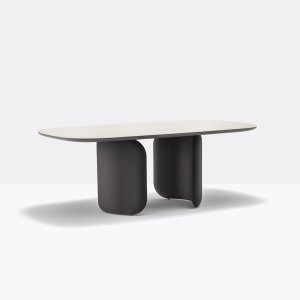

Table bases: two moulded elements of fixed size in rigid polyurethane foam, density 400 kg/m³, fire retardant class 1 IM, with an inner steel structure, upholstered in leather; two layouts, closed or open brackets

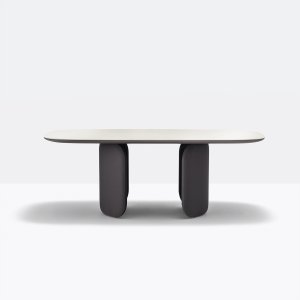

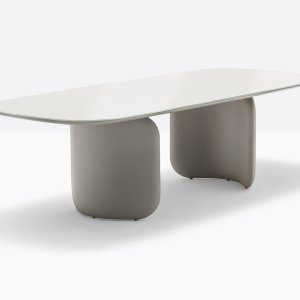

Table tops: 6 mm (0.24 in) ultra-thin solid laminate with flat edge and matching core, or 8 mm (0.31 in) glass in white shiny lacquer on the 200×110, 260×110 and 300×110 only; rounded matt-lacquered MDF support conceals the electro-welded steel structure
CC60 and CCO versions: cable slot with black powder-coated duct and a cover in the same material as the top
Packing: disassembled, one piece per carton, 0.39 m³ (13.7 cu ft)
Declared tests: EN 1728:2012+AC:2013 clauses 7.3, 7.4, 7.5, 7.6, 7.7, 7.9 and 7.10 read with EN 1335-2:2018 clause 5.2; ANSI-BIFMA X5.1-2017 clauses 5, 6, 7, 10, 12, 13 and 20
Product certifications: ministerial type approval «MODELLO ELINOR 3755» class 1 IM on the 3755 only; GREENGUARD UL 2818 for low chemical emissions listed for both
Company certifications: ISO 9001 quality, ISO 14001 environment
Warranty: 24 months on manufacturing flaws and defects, declared by Pedrali
No. The ministerial type approval «MODELLO ELINOR 3755» in class 1 IM is printed on the high-back sheet only. Both seats use class 1 IM foam, but the approval is filed against one model.
UL 2818, low chemical emissions. Pedrali lists it next to both Elinor chairs in the price list. It says nothing about strength: that is the EN and BIFMA testing, declared separately.
ISO 9001 for quality and ISO 14001 for environmental management, both printed on the Elinor sheet. They cover the company, not the individual chair.
The die-cast aluminium is declared 94% recycled at origin. Across the whole 3755 the figures are 35.5% recycled at origin and 85% recyclable at end of life; the low back reads 36.6% and 86%.
With a cloth dampened in water only. Pedrali excludes detergents, solvents, bleaching agents and abrasives. Category P is mid-grain leather, 0.9 to 1.1 mm (0.035 to 0.043 in) thick.
A specification that names Elinor without its figures leaves the decision to whoever prices it. These are the entries Pedrali actually declares, in the order a specifier needs them.
Write 3755 for the high back or 3756 for the low back. The two share the base and the seat travel, so a specification that says only «Elinor» can be filled with either one.
Elinor is declared against EN 1728:2012+AC:2013 clauses 7.3 to 7.10 read with EN 1335-2:2018 clause 5.2, and against ANSI-BIFMA X5.1-2017. Naming the clauses is what makes the entry checkable.
C, G, H or P is not enough on its own for Elinor: the sheet excludes specific ranges within G and H. Carrying the exclusions into the specification prevents a substitution at order stage.
Choose black, polished or satinized aluminium for the Elinor frame. Pedrali ties the castor finish to the base, so the castors are not a separate line to argue over later.
Close the Elinor entry with the ST_ELINOR sheet and, where the room requires it, the class 1 IM type approval. The sheet is what a reviewer checks; the specification only points at it.
