Most product pages say «sustainable». The E-Place page on the DVO site does something rarer: it lists the LEED credits the collection contributes to, by code. EAP2, EAC2, MRC3, MRC5, EQC2, EQC4 and ID1, with the greenITop reference beside them. For an architect chasing a certification on a London fit-out, those seven codes are the difference between a logo and a line that can be entered in the scorecard.

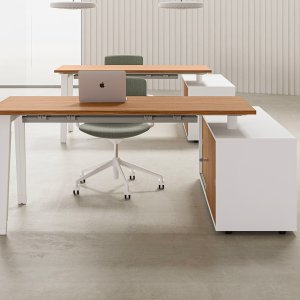

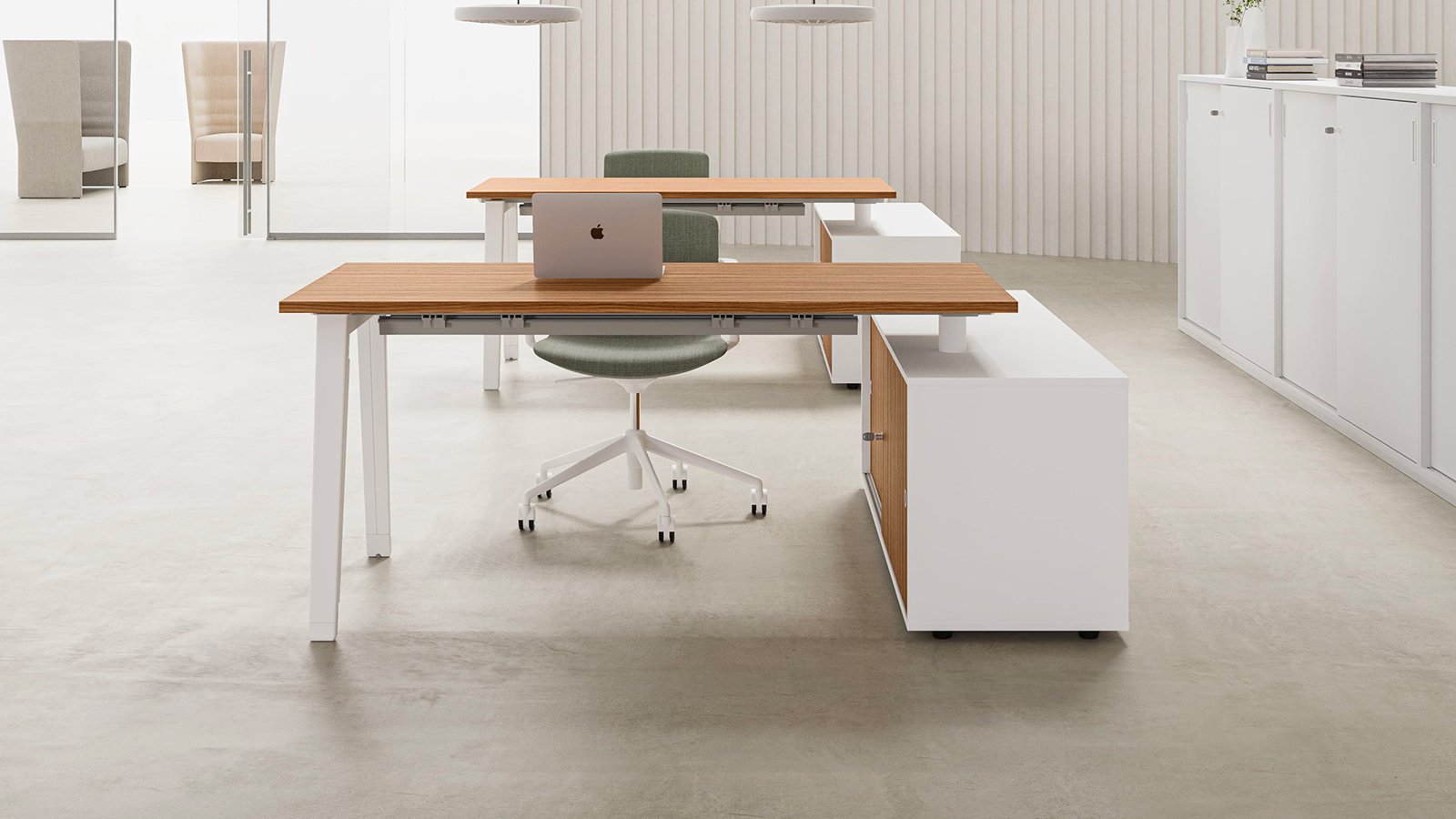

Underneath the paperwork sits a plain, well-built system of operative desks for the office designed by Gianantonio Perin and Giorgio Topan. A 25 mm (1 in) melamine top with a 2 mm (0.08 in) ABS edge rests on two trestle legs in epoxy-coated steel, 74 cm (29.1 in) high, in widths from 80 to 200 cm (31.5 to 78.7 in). The same frame carries in-line desks, a return on a supporting pedestal, bench desking in three depths with or without a central cable rail, a low service unit to hang the desk on, a 90° curved link and meeting tables, rectangular, square or round, with radiused corners. GREENGUARD, CARB Phase 2, FSC, WELL v2, FEMB Level 3 and UNI EN 527 complete the declared list.
La Mercanti sends the E-Place quotation with the certification documents already attached, downloaded from DVO's own product page and filed under the credit each one supports, so the sustainability consultant can enter them in the scorecard without asking for anything else.
Collection: E-Place, DVO Office — design Gianantonio Perin and Giorgio Topan.

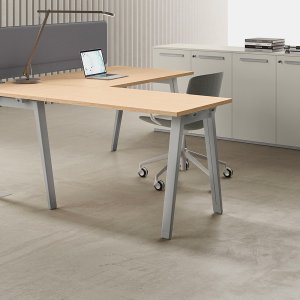

Versions in the price list: single desk; in-line connectable desk; return; return with supporting pedestal (4 drawers, or 2 drawers and filing drawer, with lock); bench with facing tops; bench with central rail and two aluminium flip doors; in-line connectable bench; desk and bench integrable with the service unit; 90° two-way curved link; end top with brackets for bench; rectangular, square and round meeting tables; round and square table on freestanding leg.

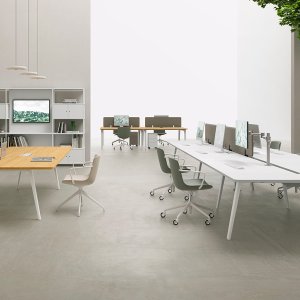

Desk: W 80 / 100 / 140 / 160 / 180 cm (31.5 / 39.4 / 55.1 / 63 / 70.9 in) × D 65 cm (25.6 in); W 140 / 160 / 180 / 200 cm (55.1 / 63 / 70.9 / 78.7 in) × D 80 cm (31.5 in); H 74 cm (29.1 in). Return W 80 / 100 cm (31.5 / 39.4 in) × D 65 cm (25.6 in); return with supporting pedestal W 100 / 120 cm (39.4 / 47.2 in).

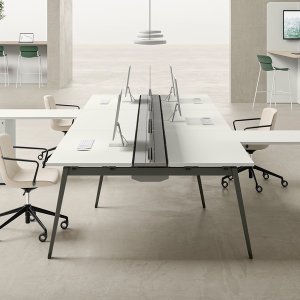

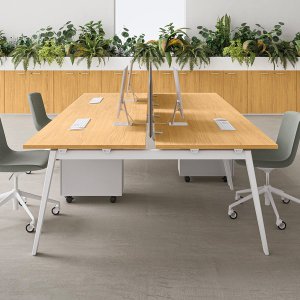

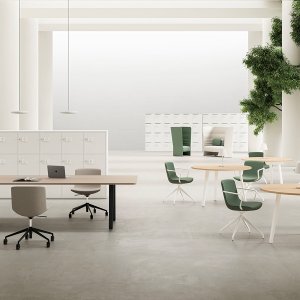

Bench: W 140 / 160 / 180 cm (55.1 / 63 / 70.9 in) × D 136.5 or 166.5 cm (53.7 or 65.6 in); with central rail D 158 cm (62.2 in); end top with R 45 mm (1.8 in) corners, D 40 cm (15.7 in).

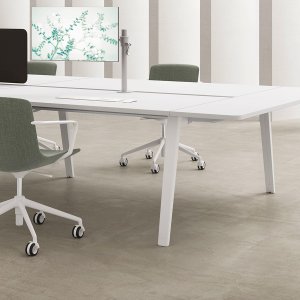

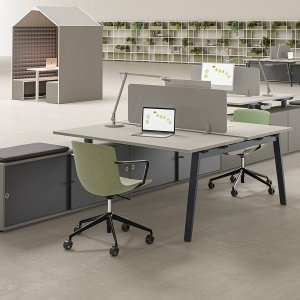

Meeting tables: rectangular 240 / 300 × 120 cm (94.5 / 118.1 × 47.2 in) with R 45 mm (1.8 in) corners, on two columns with 55 cm (21.7 in) square base or on trestle legs; square 140 × 140 cm (55.1 × 55.1 in); round Ø 100 / 120 cm (39.4 / 47.2 in) on column with 55 cm (21.7 in) base or on trestles; round Ø 60 cm (23.6 in) and square 100 × 100 cm (39.4 × 39.4 in) in MDF on freestanding leg; H 74 cm (29.1 in).
Top: melamine, 25 mm (1 in) thick, with 2 mm (0.08 in) ABS edges; optional rectangular or round cable ports.

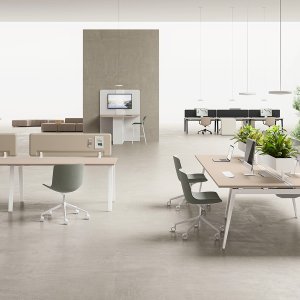

Structure: trestle legs in epoxy powder-coated steel: horizontal rectangular tube 60 × 40 mm (2.4 × 1.6 in), 1.5 mm (0.06 in) thick, and two vertical uprights in 1.5 mm (0.06 in) pressed sheet steel with variable section; beams in trapezoidal-section steel tube, 2 mm (0.08 in) thick, with moulded ABS end caps; polyethylene levelling feet, 0-15 mm (up to 0.6 in) adjustment.
Modesty panel: 18 mm (0.7 in) melamine, trapezoidal shape, H 38 cm (15 in), W 110 cm (43.3 in) for desks of 140-160 and W 140 cm (55.1 in) for desks of 180-200, left or right.
Cable management: single or double cable tray under the top, extruded PVC duct 65 / 85 / 110 cm (25.6 / 33.5 / 43.3 in), vertical leg duct 10 × 6 × 74 cm (3.9 × 2.4 × 29.1 in) in the leg colour, central bench rail in anodised aluminium with two flip doors, CPU holder with straps.

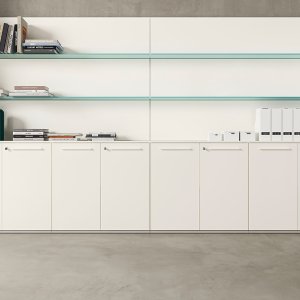

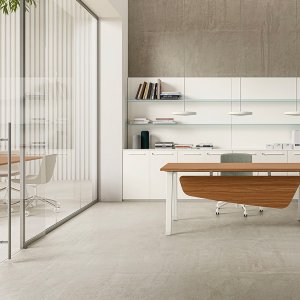

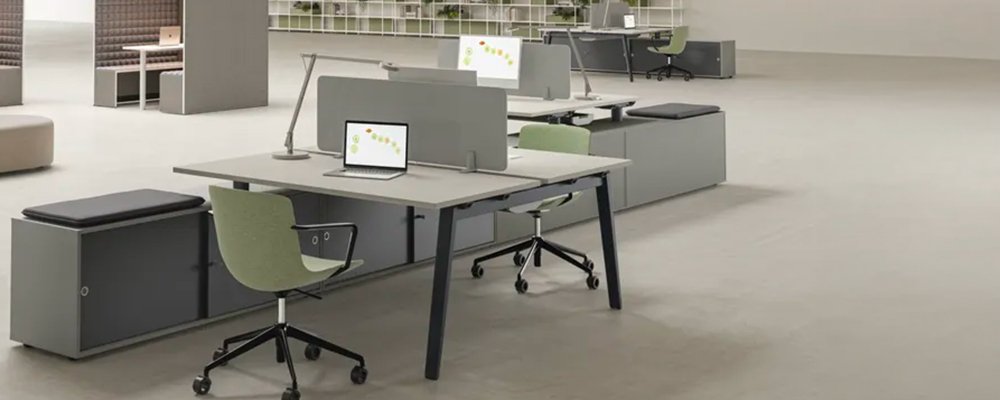

Storage and accessories: service unit 160 × 48 × 58 cm (63 × 18.9 × 22.8 in) with two sliding doors, lock and two shelves (optional drawer, cushion in Trevira CS Jet Bioactive fabric 77 × 45 × 3.5 cm / 30.3 × 17.7 × 1.4 in, colours Pepe, Sesamo, Timo, Liquirizia); hanging metal drawer 32.5 × 52 × 7 cm (12.8 × 20.5 × 2.8 in) with lock; hanging two-drawer pedestal 33 × 54 × 35 cm (13 × 21.3 × 13.8 in); optional 18 mm (0.7 in) metal plinth for the supporting pedestal.
Finishes: melamine tops in white, light grey, light oak, natural oak, walnut, umber, matt black soft touch; beams in aluminium RAL 9006; legs in white RAL 9016, aluminium RAL 9006, anthracite RAL 7016 or brick red RAL 8004, sage green RAL 6013, powder blue Pantone 7542; ABS caps in white, grey or anthracite; handles Q, V or T.
Certifications declared on the E-Place sheet: GREENGUARD, CARB Phase 2, FSC, LEED (contributes to credits EAP2, EAC2, MRC3, MRC5, EQC2, EQC4, ID1), WELL Building Standard v2, FEMB Level 3, UNI EN 527-1 and 527-2, Italian D.Lgs. 81/08, CAM. Documents can be downloaded from the article page.
Warranty: 8 years, as stated by DVO.
Planning: collection available in the pCon.planner configurator.
Manufacturer: DVO Office, Roveredo in Piano (Pordenone), Italy.
